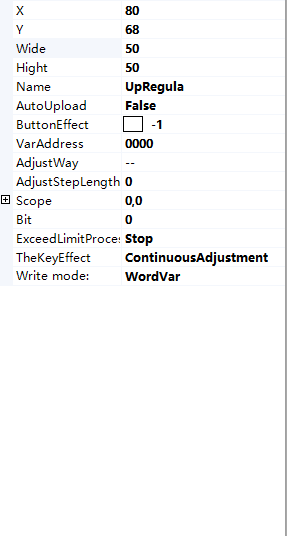

Location: Touch button area.

'X' 'Y' is the upper-left corner coordinate of the touch area.

'W' 'H' is the width and height of touch area, unit is pixel

Name: The default Slider Adjustment, the current touch area name can be reset.

ButtonEffect: The page of button press effect figure (-1 default no corresponding effect)

AutoUpLoad: True/false.

VarAddress: Enter the variable address corresponding to the data (0x0000-0x6FFF).

StartReturn: The return value corresponding to the start position.

TerminationReturn: The return value corresponding to the termination position.

DataReturnFormat:

Adjust word address (integer number).

Adjust the high byte address of word address (1 byte unsigned number )

Adjust the low byte address of word address (1 bytes unsigned number).

DragWay: Drag horizontally and drag vertically.
