By changing the value of X and Y coordinate variable address, the icon can be moved to any position.

Such as:

(X&Y) Variable address is 0x0011,0x0012,

Send (HEX) 5A A5 07 82 0011 0064 0064

Move the icon to the position of (100,100)

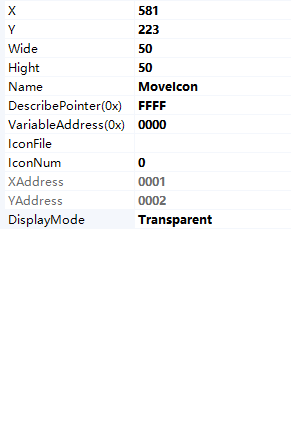

8.8 Movable icon

Location: display area, beyond the part is not displayed.

Name: MovableIcon.

DescipePointer:  fixed at 0xFFFF.

VarAddress: variable store pointer (0x0000 -- 0x6FFF).

IconFile: Icon libraries store files, see chapter 5.3 for details.

IconNum: Select an icon.

RotationRadius: The radius of the slide track.

XvarAddress: It is used to store the X coordinate of the displayed icon, occupying two bytes.

YvarAddress: It is used to store the Y coordinate of the displayed icon, occupying two bytes.

DisplayMode: Displayparent/(display background).
